Name: NCM Moscow Plus
SKU: 672818

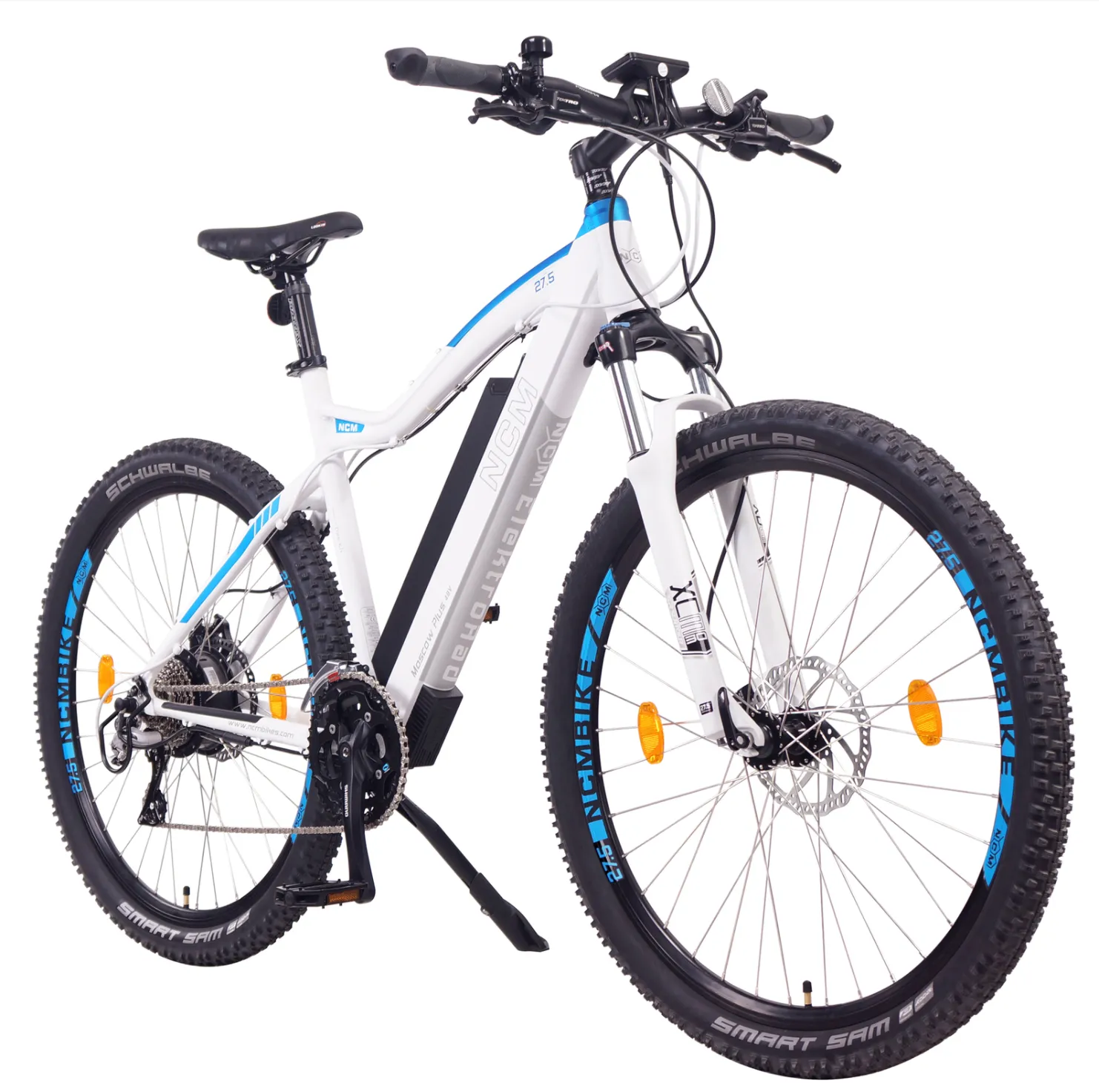

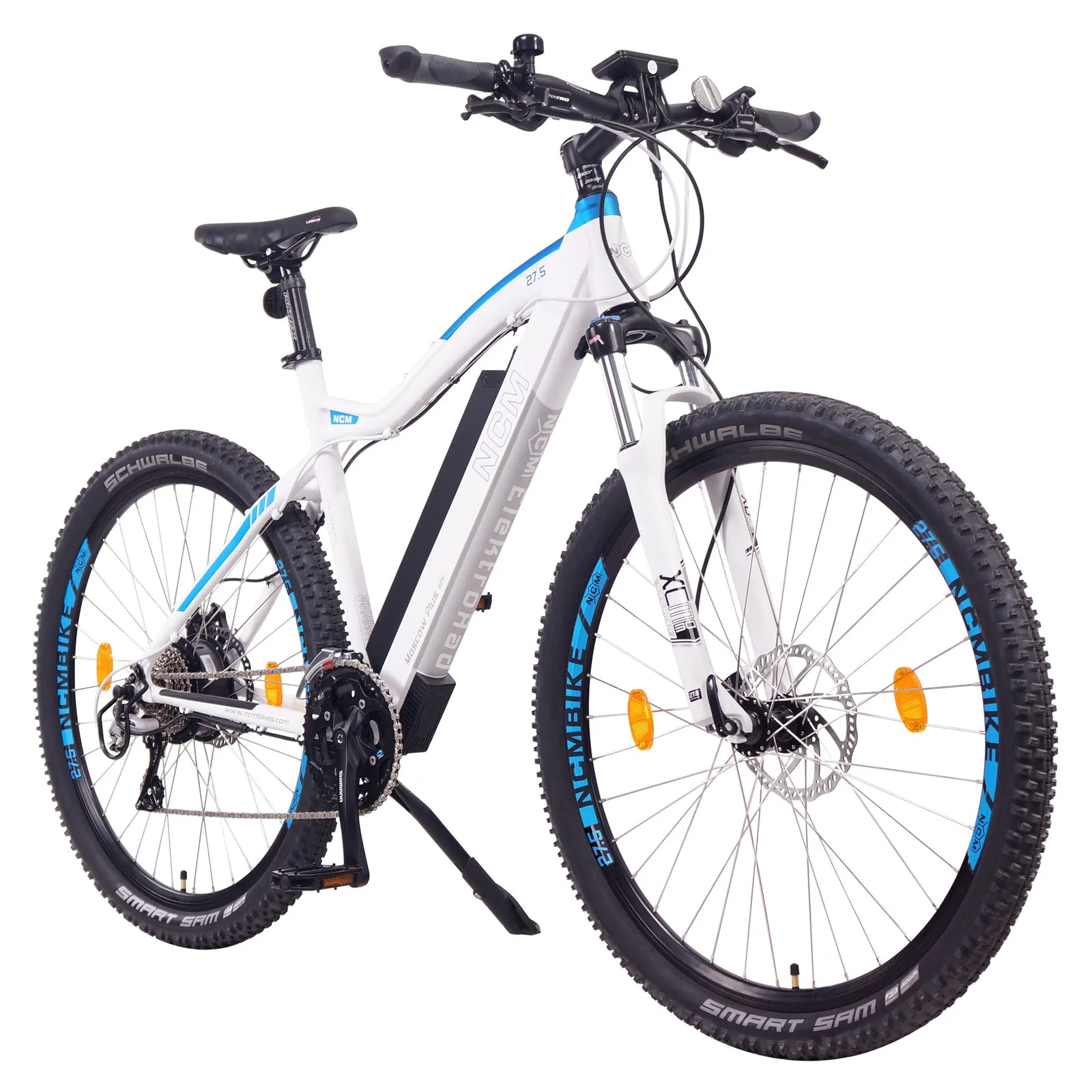

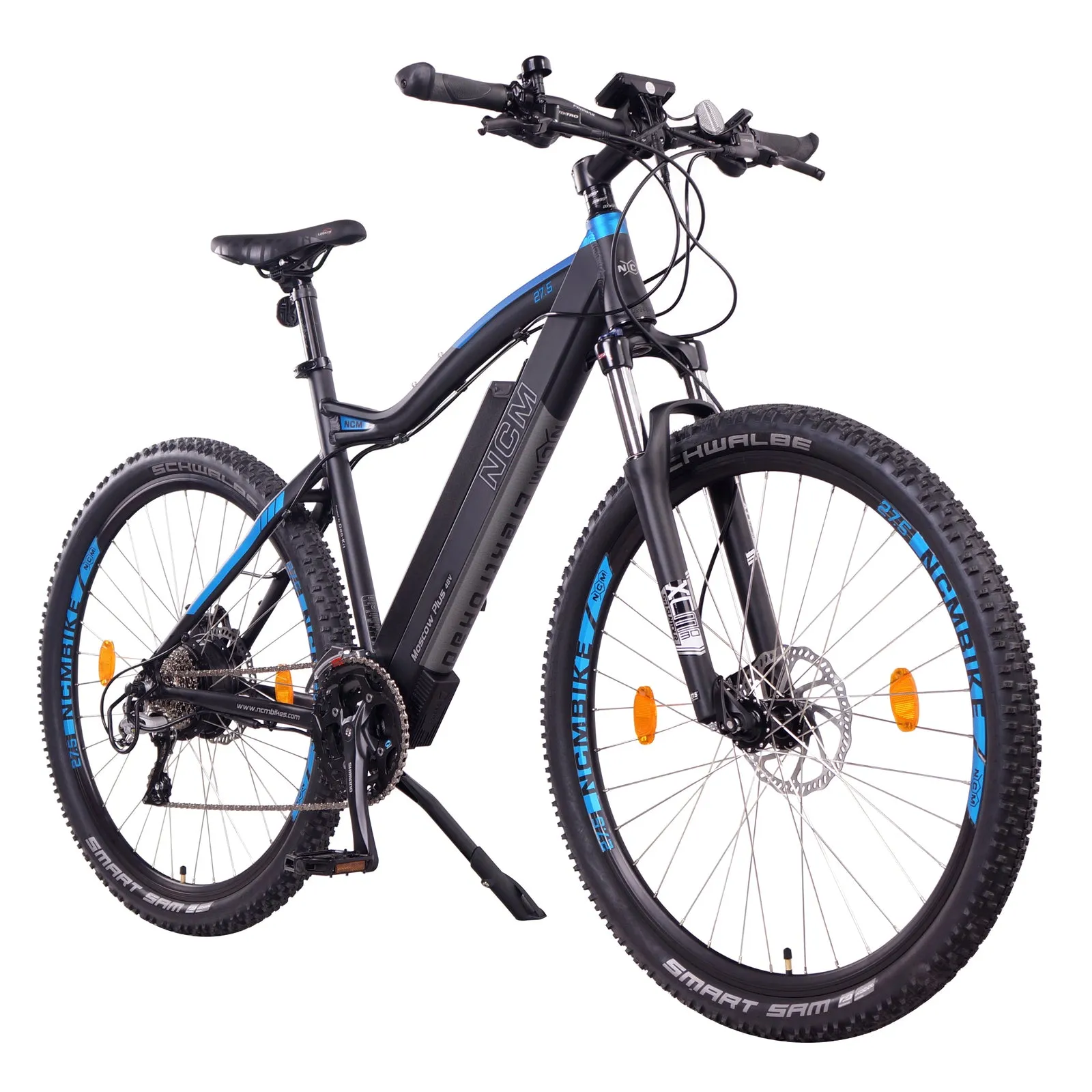

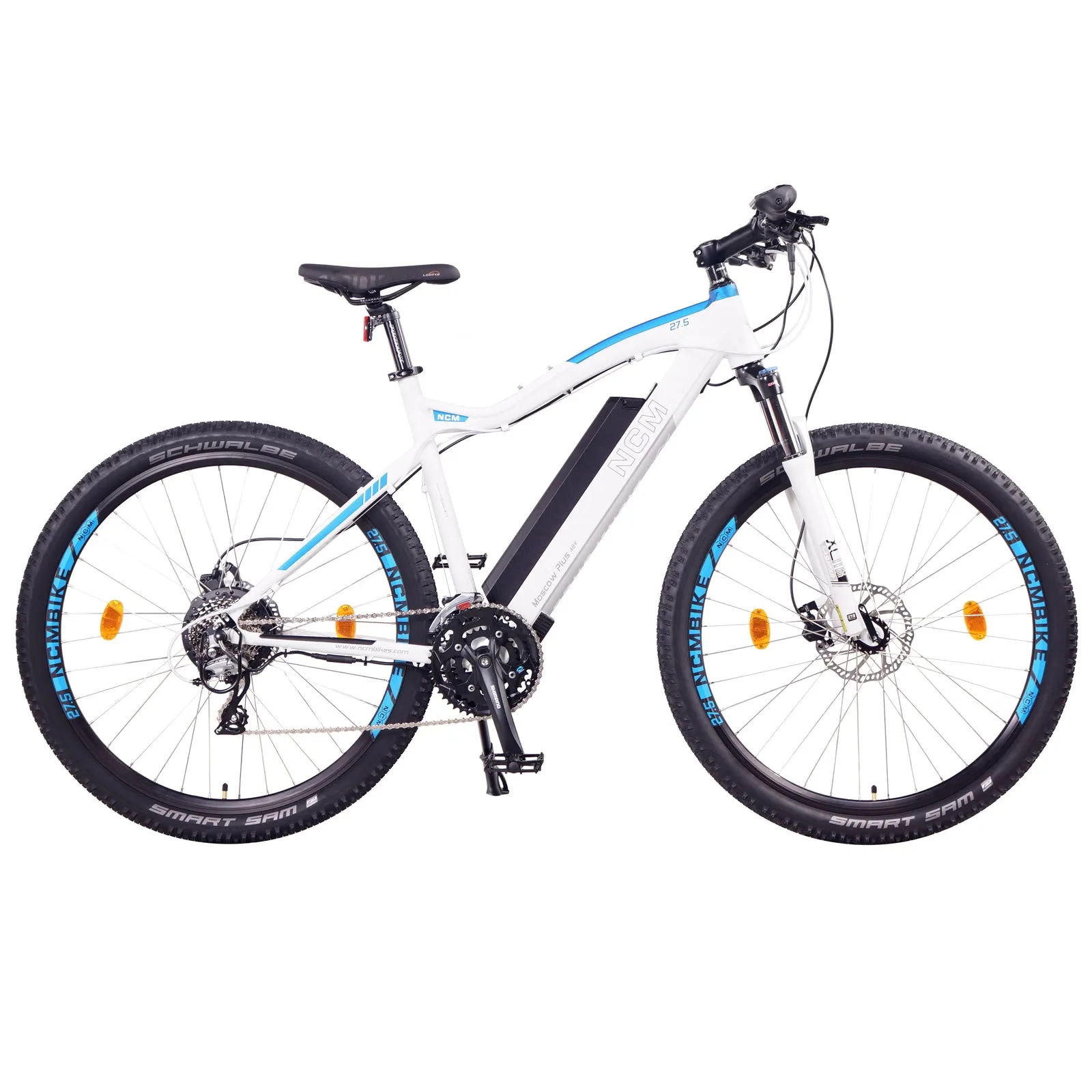

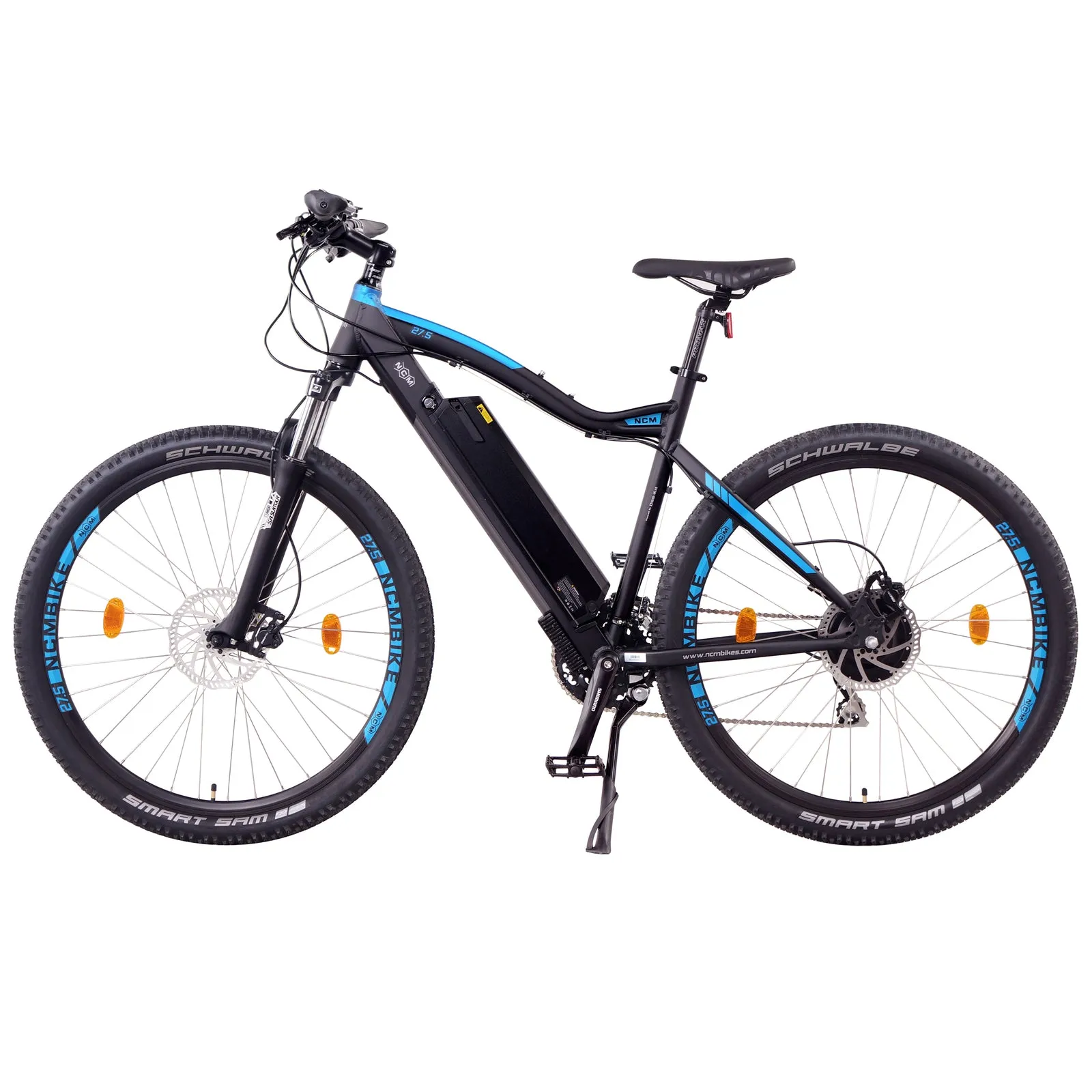

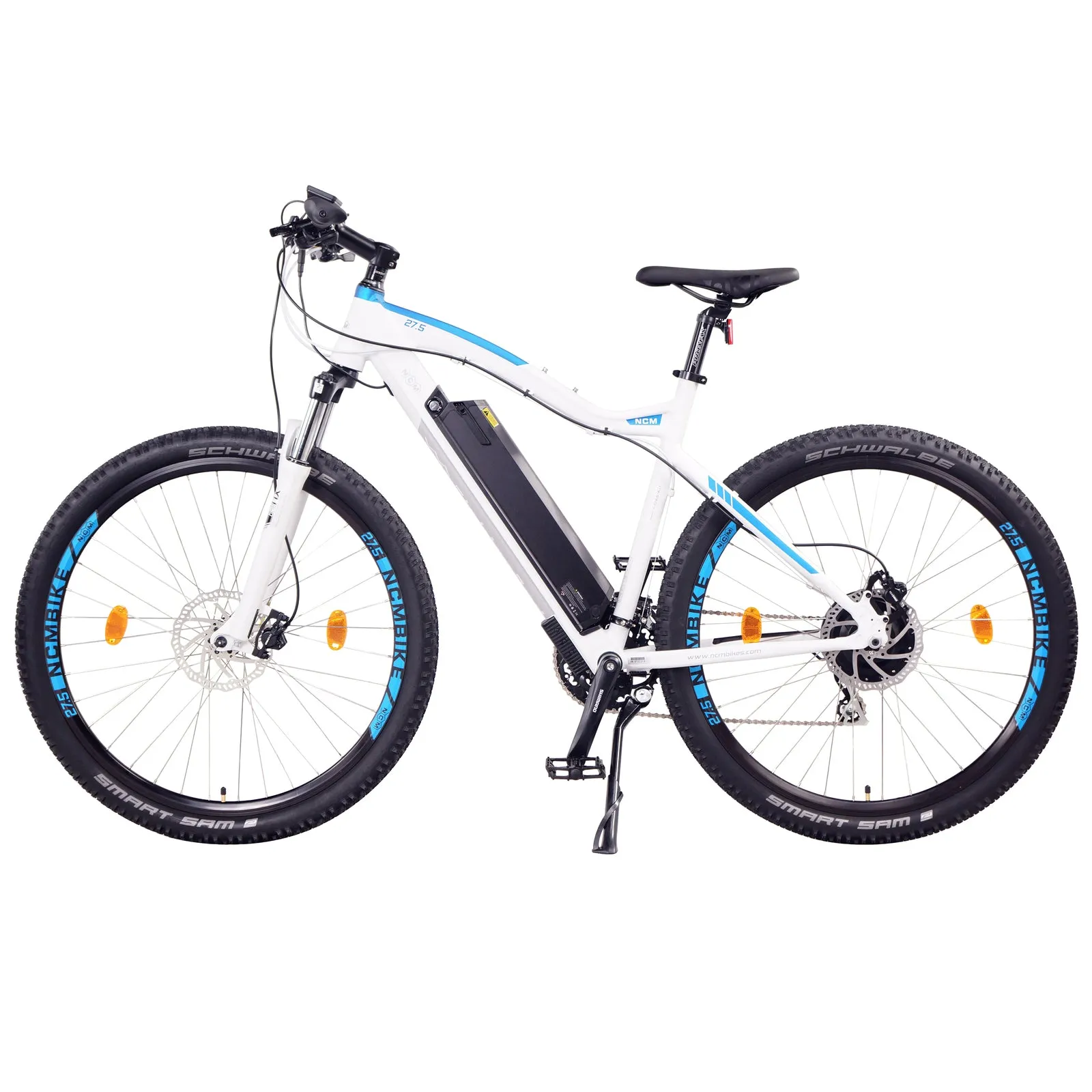

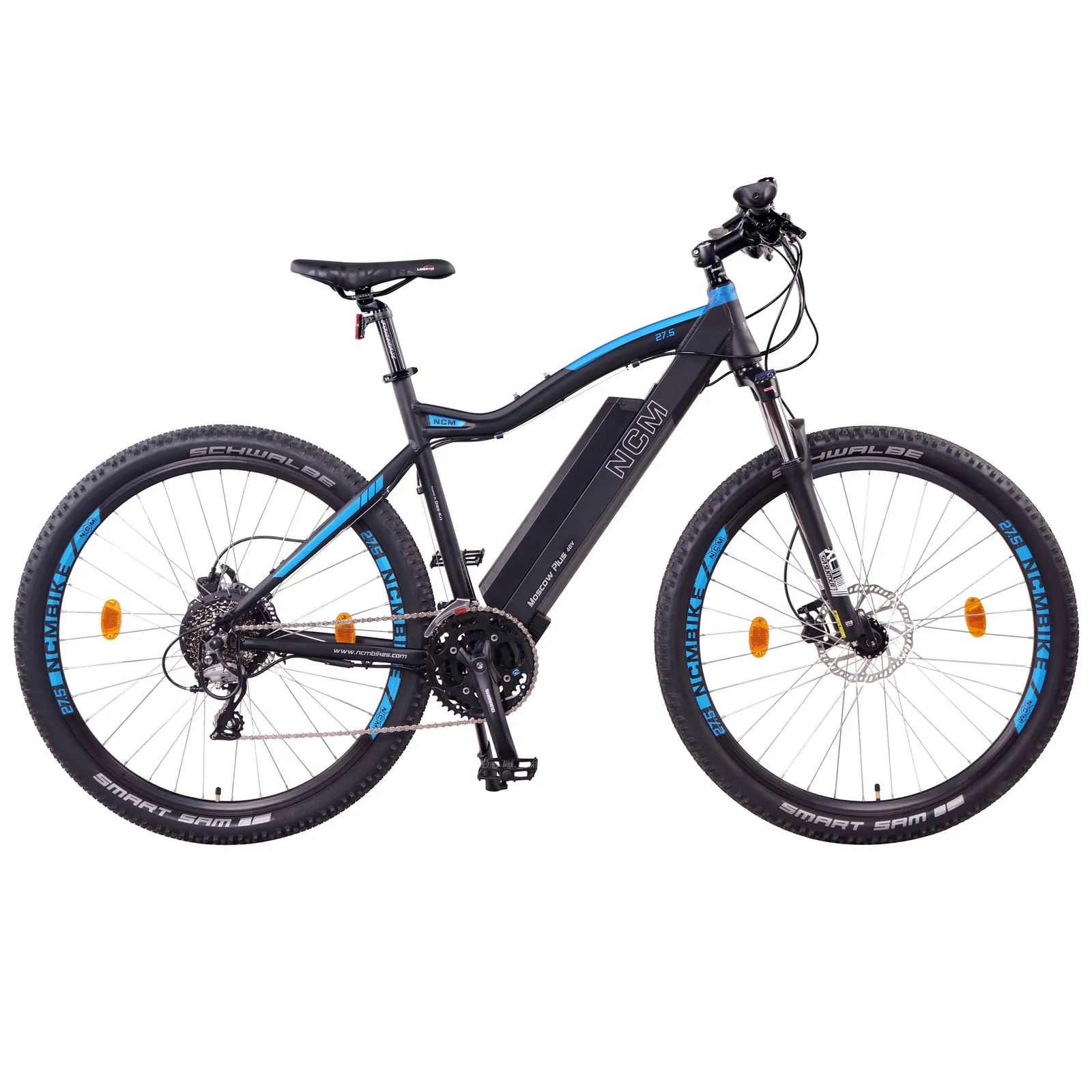

NCM Moscow Plus 27,5" / 29"

The Moscow Plus keeps everything people love about the highly popular Moscow, and then improves them. Most of all, we’ve improved performance: an upgraded Suntour hydraulic suspension fork now has 100mm of travel and a lock-out function; a Shimano Acera crankset and rear derailleur with 8-speeds offer even more versatility; and the Tektro brakes are now hydraulic with 180mm rotors to stop you on a dime. That’s not all, though, as we’ve put even more juice into the battery for a total of 768Wh, and we’ve upgraded the display for more functions and to be more convenient with its buttons and screen now separable. The Moscow is already a high performer, but if you feel like you need a little plus, our NCM Moscow Plus has more than enough to satisfy even the hard-core trail blazers.

Sporty handlebar & strong DeHawk battery

Ergonomic bicycle Grips
Comfortable sitting posture
Over 48V 750Wh battery capacity for a longer distance
Reach up to 150km per Charge (depending on the conditions)

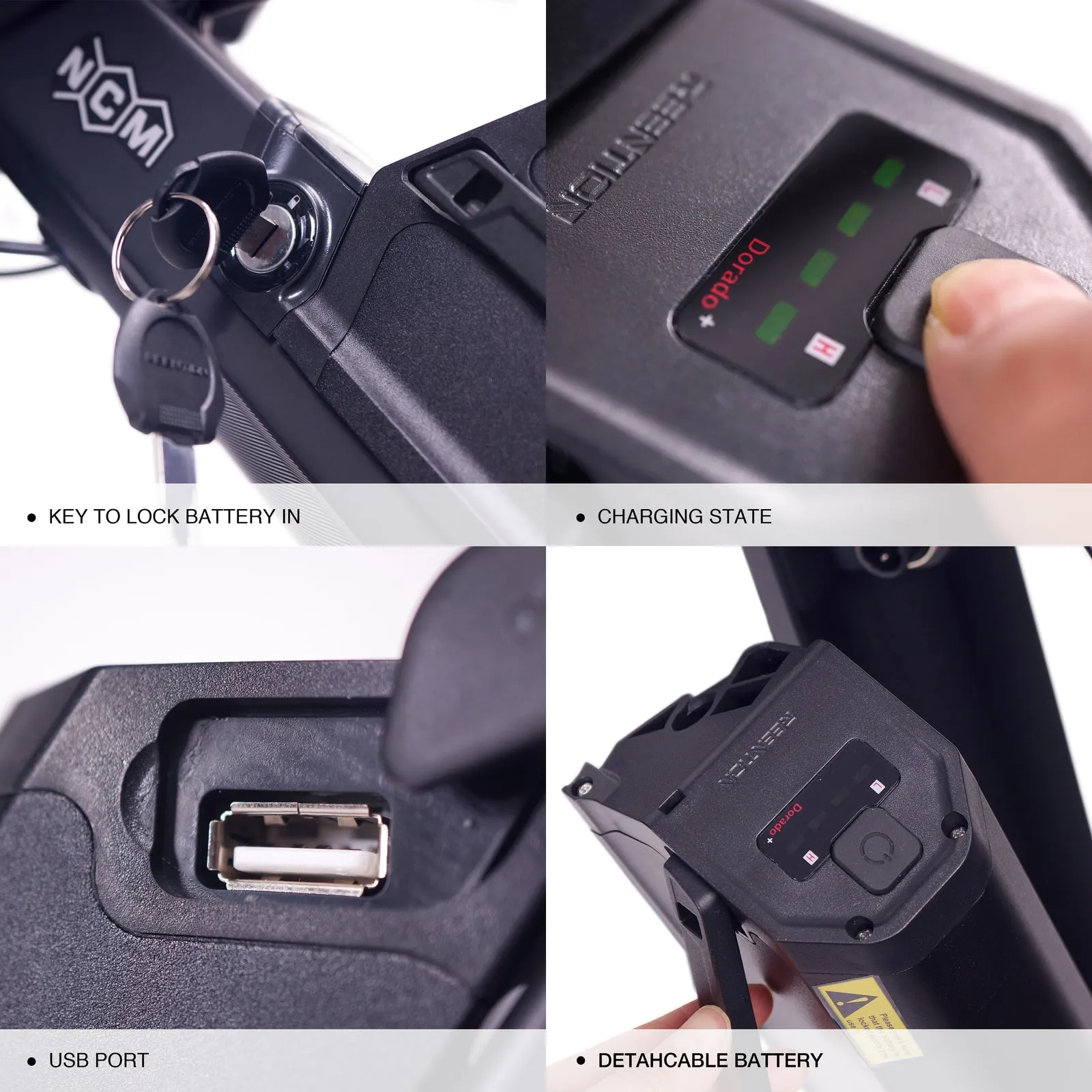

Integrated battery in the frame for better aesthetics
Easily removable battery so you can charge it anywhere with built-in USB port and 5V to charge mobile phones

Safe braking performance

Front Brake:

Reliable hydraulic disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.

Rear Brake:

Reliable hydraulic disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.

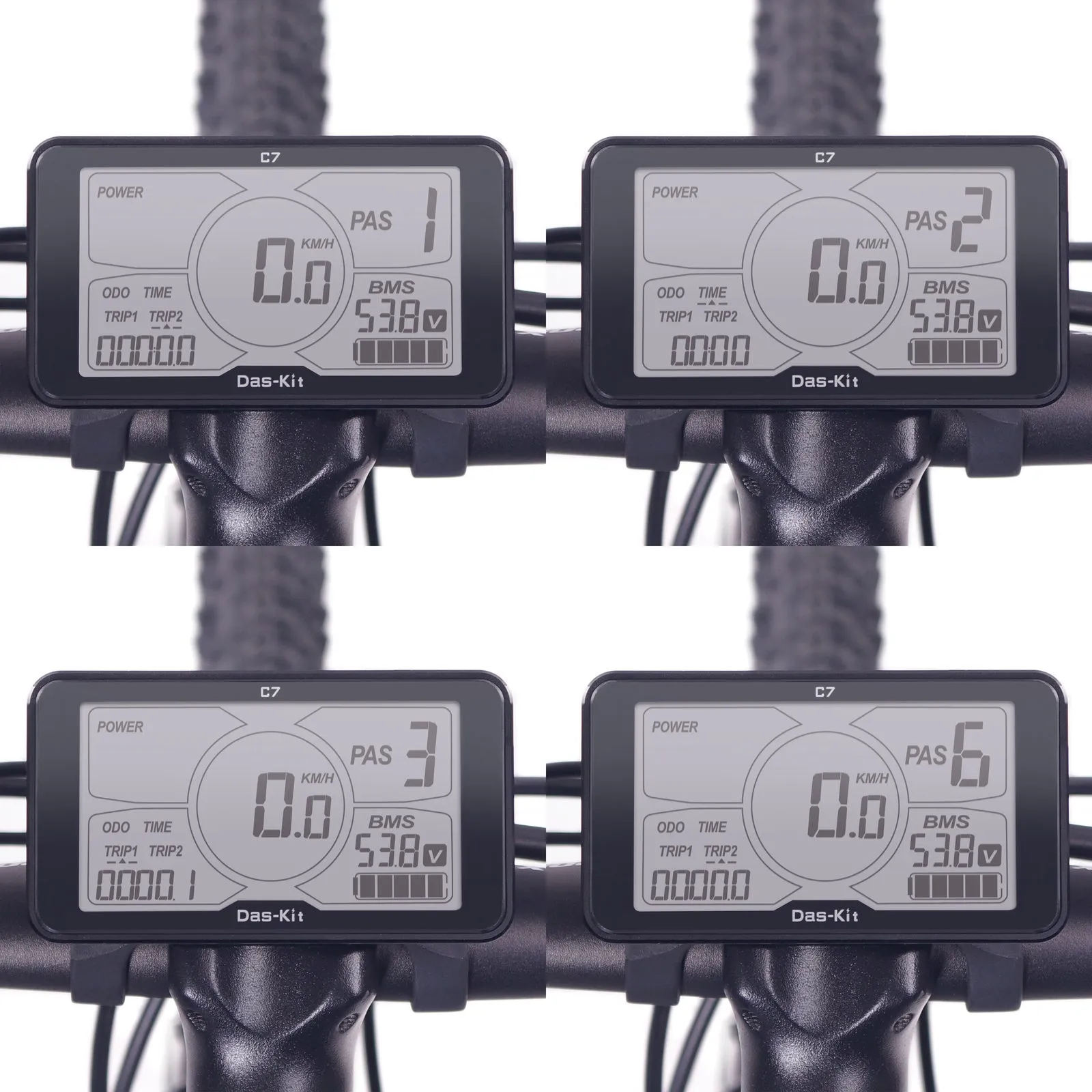

Das-Kit System

Das-Kit system with a high-contrast LC display provides all important information at a glance and can also

be read easily in direct sunlight. The LC display gives good feedback, is extremely robust and easy to use.
The additional power can be individually controlled via six support levels.
It is protected against dirt and splash water.

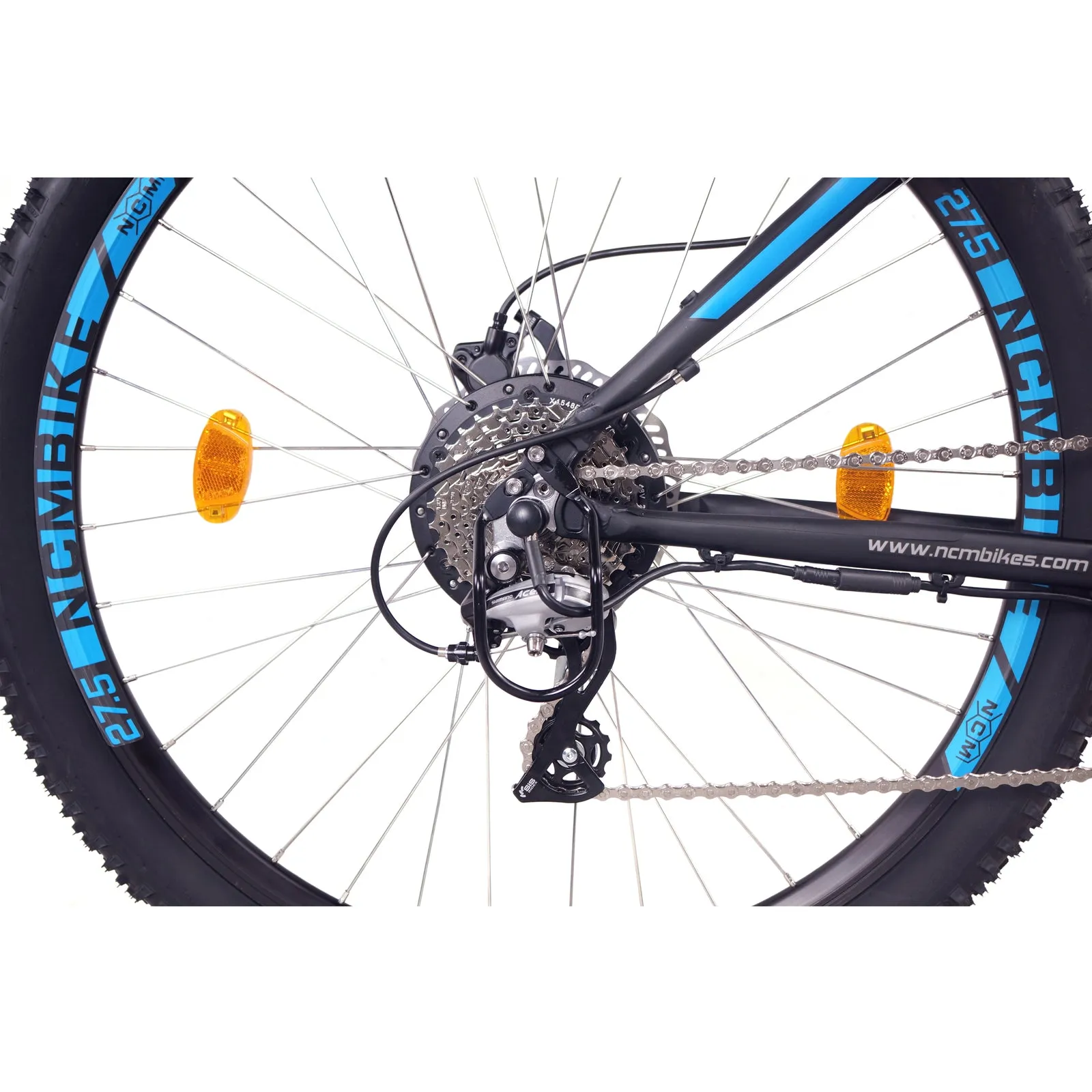

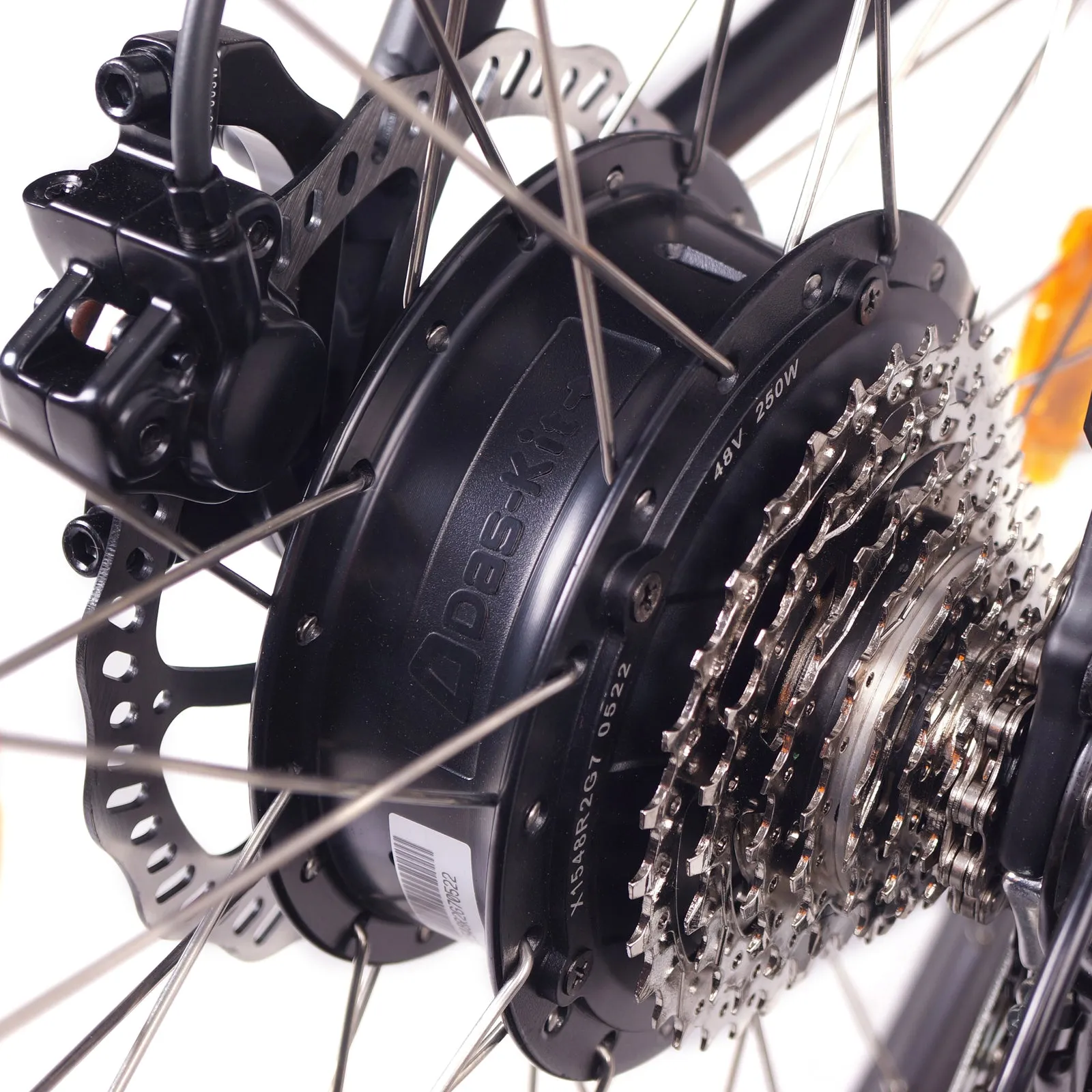

The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48V voltage.

A large display shows all necessary settings.

6 support levels and a pushing aid of up to 6km/h are adjustable.

The display's control buttons are deliberately placed on the left side - close to the left hand - so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.

Quality inspection and final adjustment:

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before driving, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. It is recommended to have a professional technician assemble the bike to ensure accuracy and safety.

Comparison

The brand introduces itself:

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality.. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through an friendly driving experience and the promotion of a fun and active lifestyle.

NCM Moscow Plus 48V 16Ah Details

General Information

Weight: 25.4 kg
Type: E-Mountain bike
Wheel size: 27,5” / 29”
Load capacity: Max. 125kg
Maximum speed: 25km/h

Electric parts

Display: Das-Kit, L7B, LCD, 6 Assistant levels, up to 6km/h power assist walk
Controller: Das-Kit, CT5-I5, 48V 15A

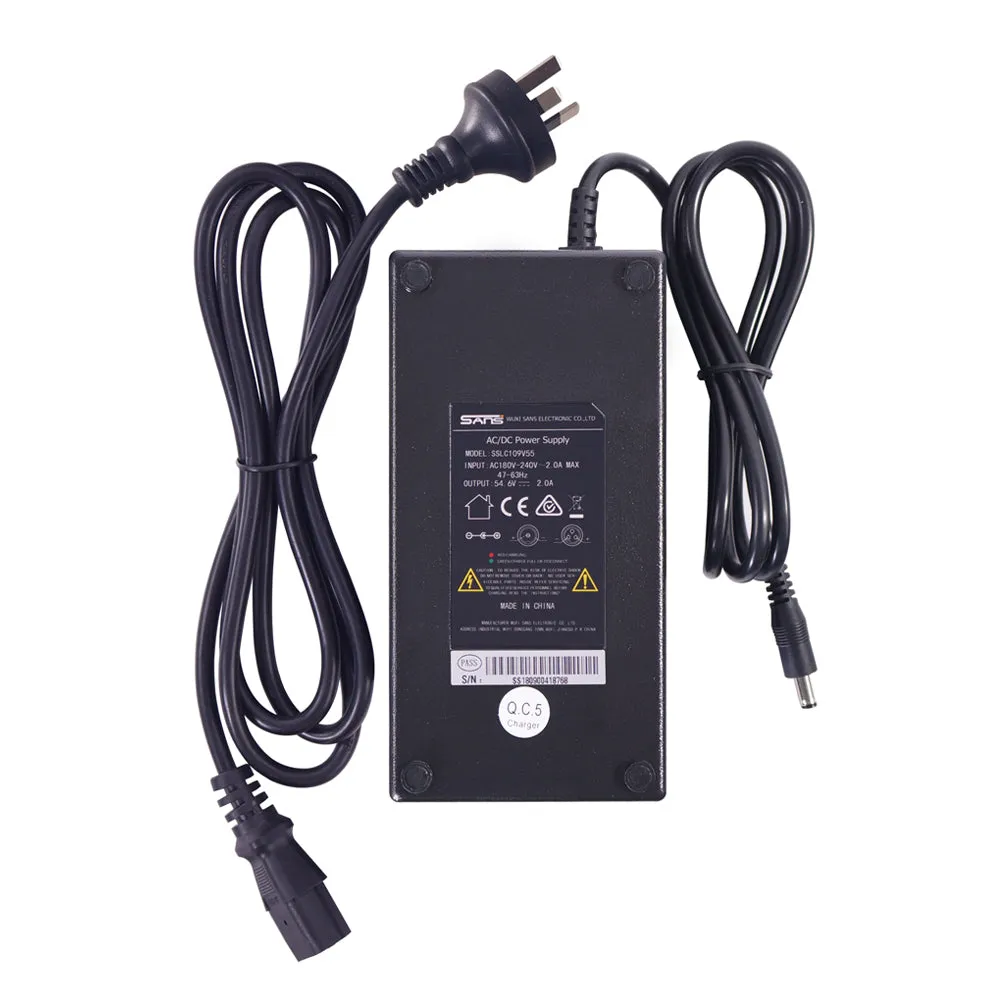

Charger: Included DC482AU 48V 2A with round plug
Motor: Das-Kit, X15, 48V 250W, 25km/h, rear motor wheel
Battery: i5-4816P, 48V 16Ah, 768Wh Panasonic Cells,
Li-NCM-18650 incl. USB port
(charging mobile devices with 1A)
Distance approx. 70-150km depending on assistance level.
Front/Rear Light: Have to be purchased separately. Not included. Front/Rear reflector incl., cat's eye

Bike parts

Frame: Aluminium 6061, 27,5“ 480MM / 29"*520MM,
Fork: Suntour, XCM-27.5 / 29” with suspension and lock-out
Brake Lever: Tektro, with brake sensor on both sides
Brakes: F/R: Hydraulic Tektro Disc Brakes

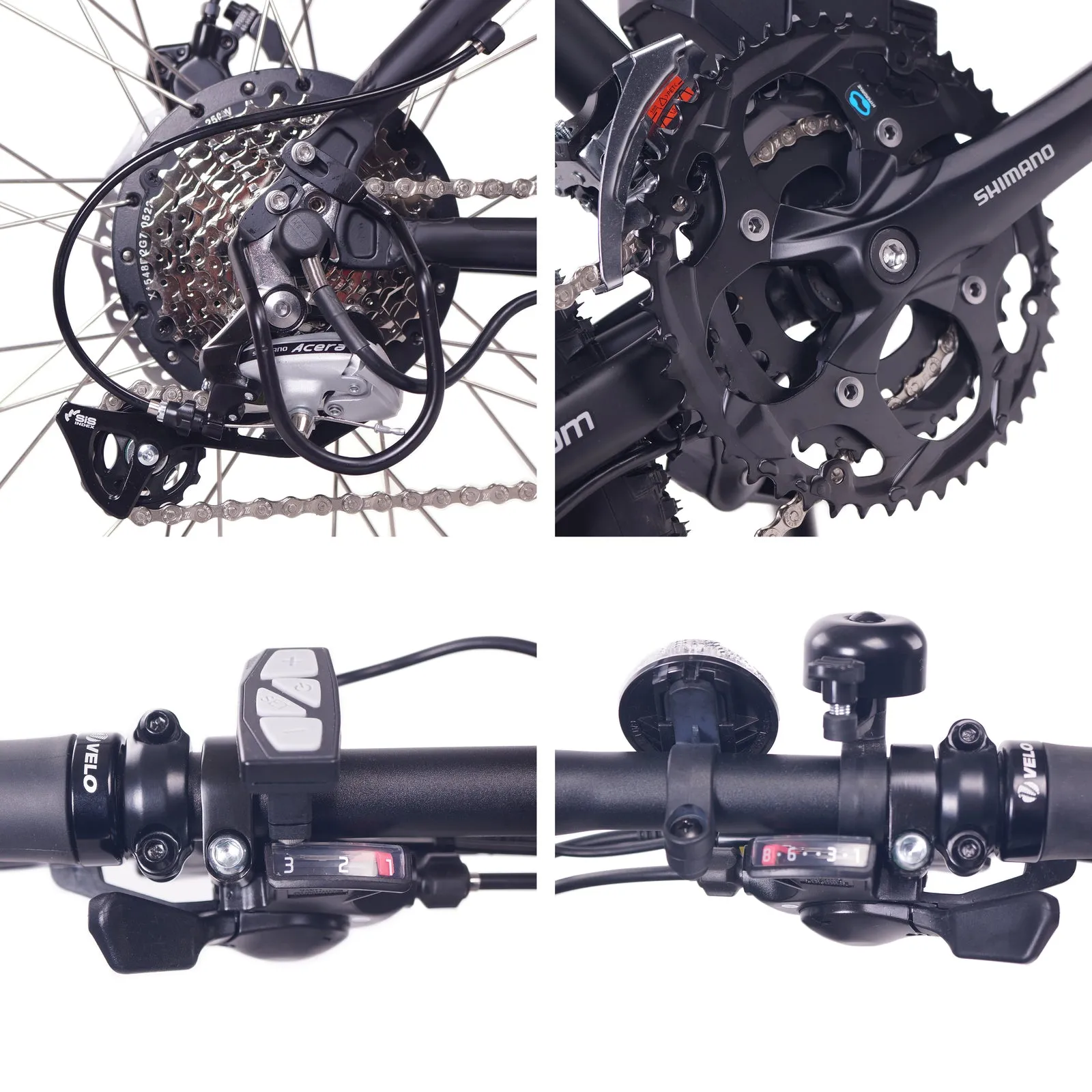

Crank: Shimano, FC-M361, 170mm, 28/38/48T
Gearshift: Shimano, Altus, F: SL-M310-L, 3 Gang, R:SL-M310-8R, 8 Gang
Rear Derailleur: Shimano, Acera, RD-M360, 8 speed
Tire: Schwalbe, SMART SAM 27,5"* / 29"* 2.25
Saddle: VELO designed by NCM, black
Seat Post: Promax, Alu.MA-471, Ext 90mm
Grip: VELO, ergonomic, black/grey (synthetic)
Pedal: Wellgo. B087, black

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.

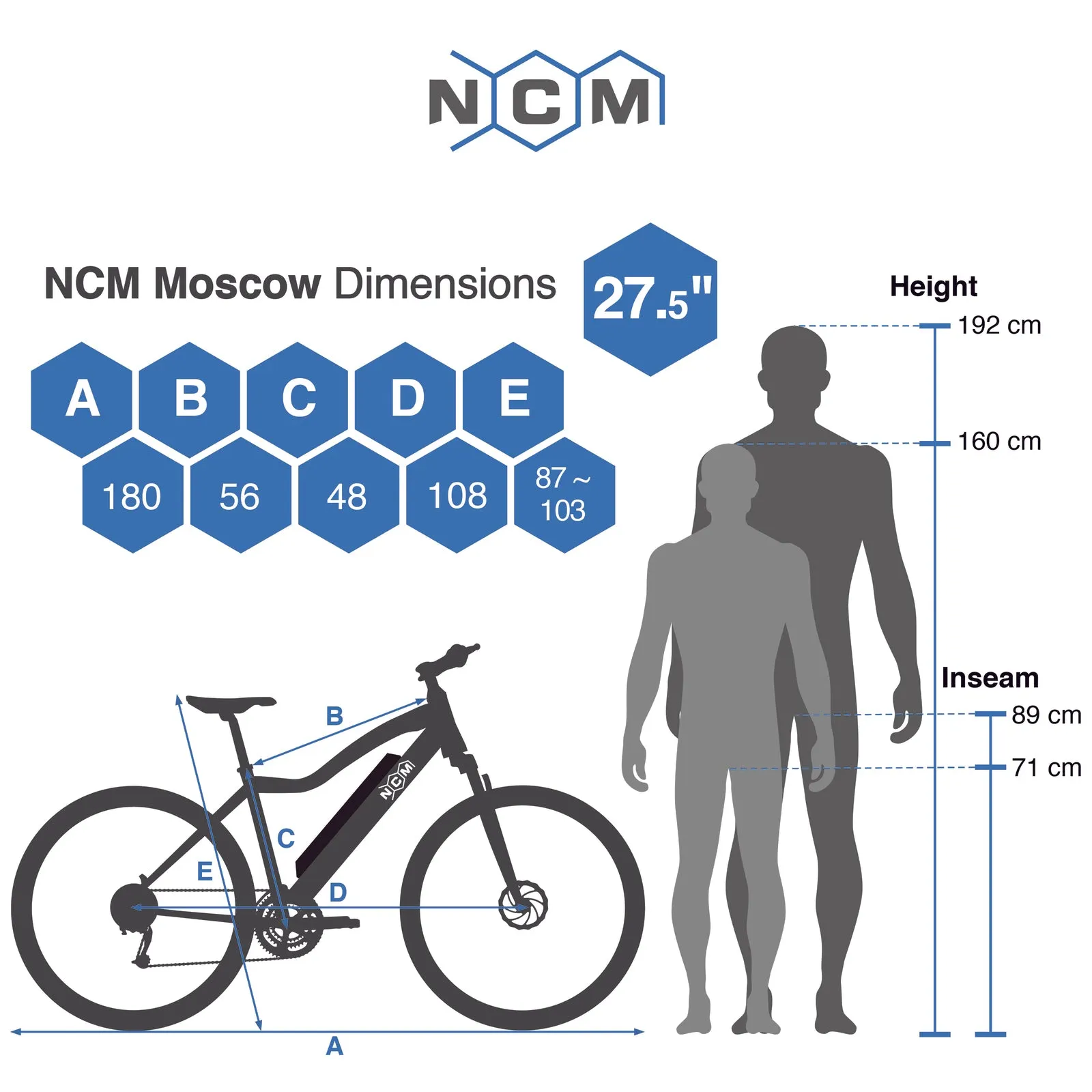

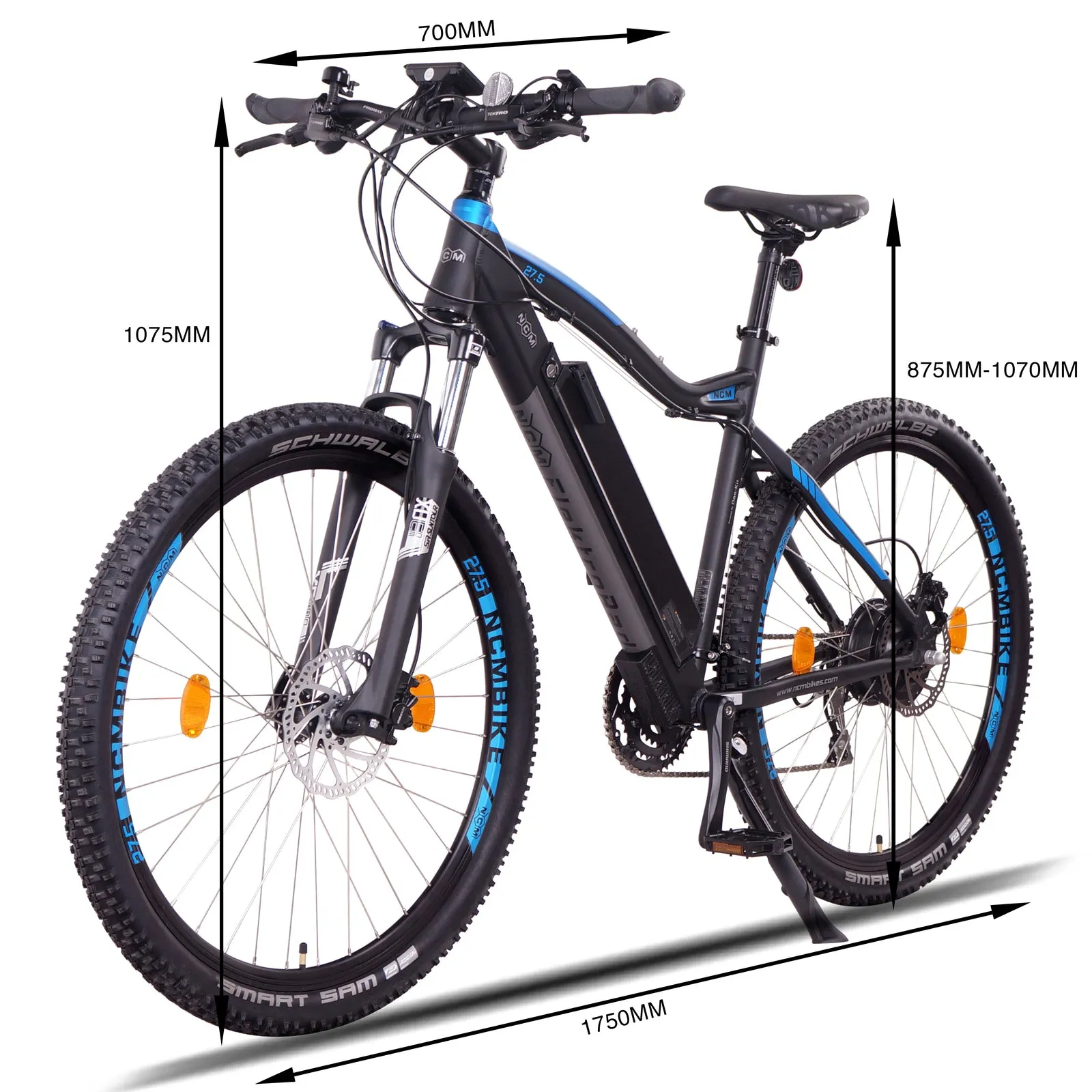

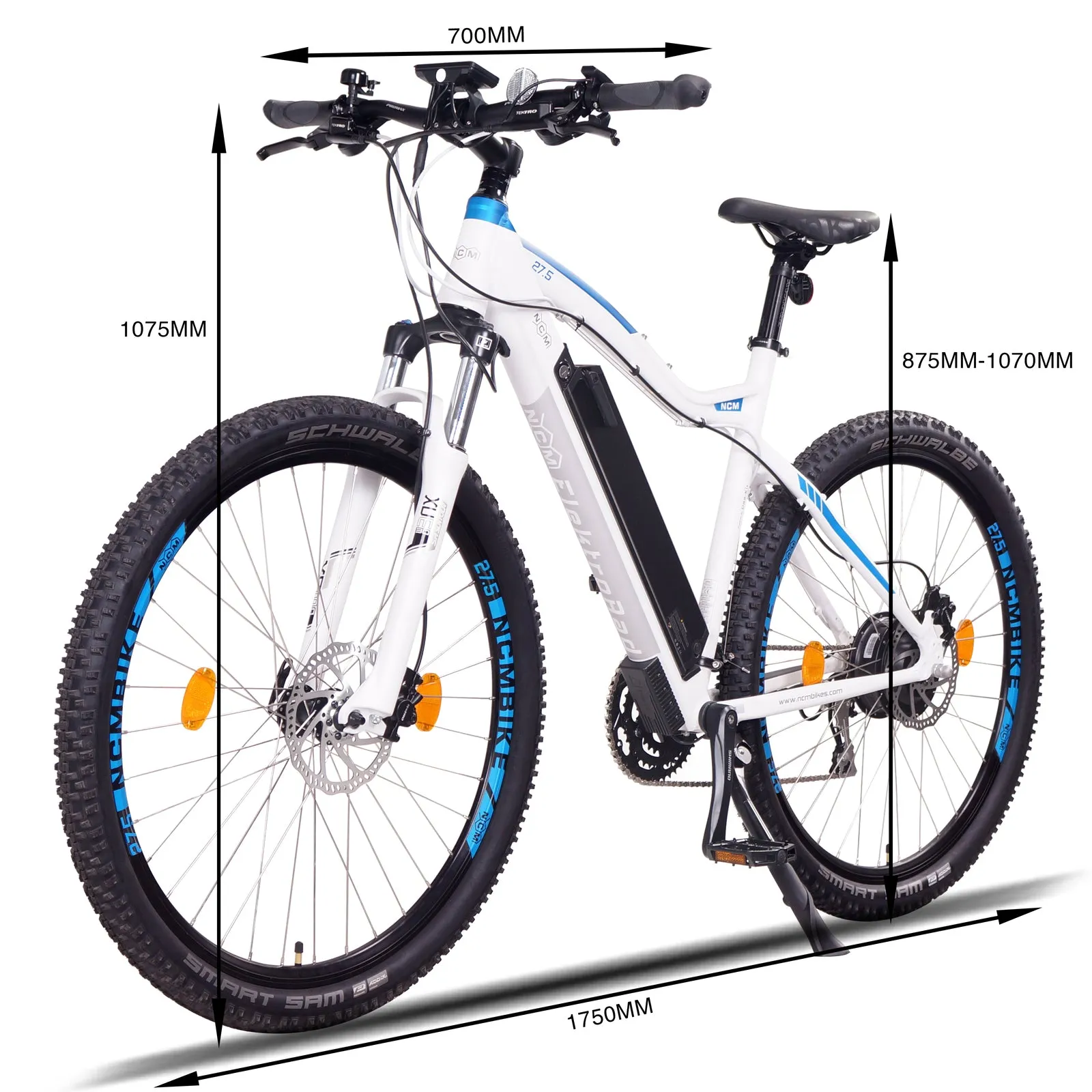

NCM Moscow Plus Dimensions
